1.54-inch TFT display-7 Segment LED Display_LCD/LED Display Module

1.54-inch TFT display

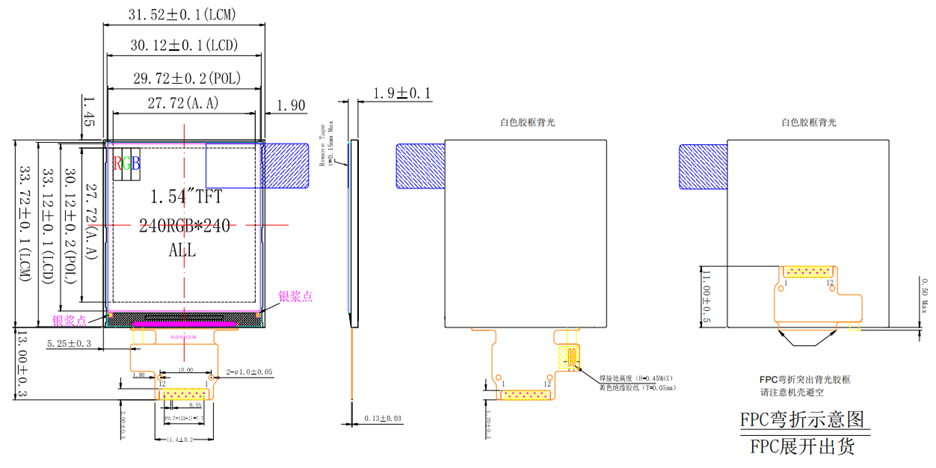

31.52*33.72

Size: 1.54 "IPS

Resolution: 240H * 240V RGB

Glass: Hancai HSD

IC: Sichuang ST7789V

Angle of view: All View

Interface: 4 line SPI/8 bit 8080

Interface mode: welding/in-line/male and female seat

Backlight: 3 White LED

Brightness: 400cd/m ² （TYP）

Display color: 65K colors

Touch: full fit

Working temperature: - 20 ℃ - 70 ℃

Storage temperature: - 30 ℃ - 80 ℃

Inquiry
