Product Details

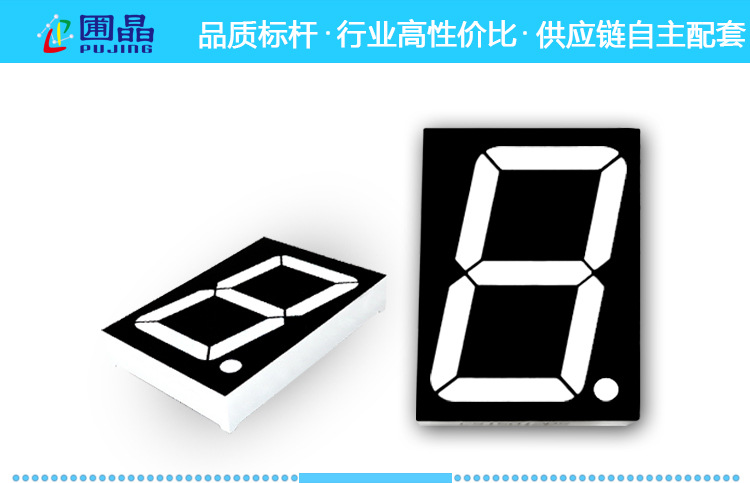

    23011AB

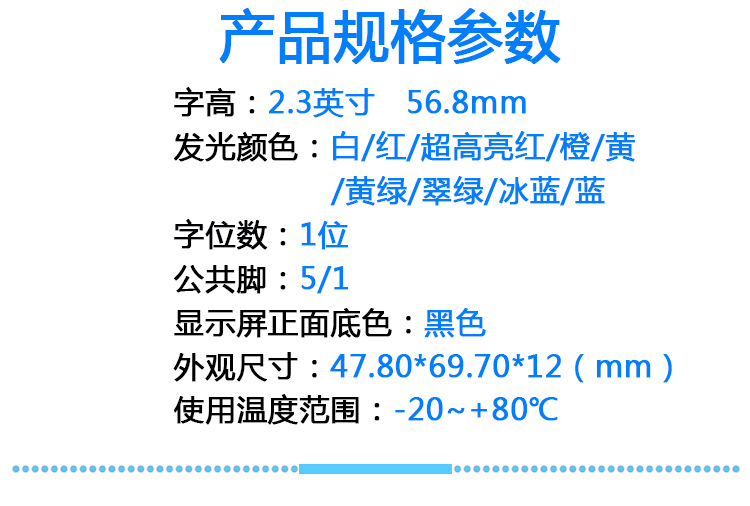

    • Product Model:
      • 23011AB
    • Digit:
      • 1 Digit
    • Digit Height:
      • 2.3inch
    • Driving Peak Current:
      • 80MA(mA)
    • Recommended Driving Voltage:
      • 5V(V)
    • Functional Pin Alignment(optional):
      • See specification sheet
    • Drive Mode(optional):
      • Common cathode、Common Anode、Common cathode & anode
    • Color(optional):
      • White、Ice blue、Hyper Bright Red、Orange、Verdant、Bright red、Yellow、Yellow green、Blue
    Inquiry

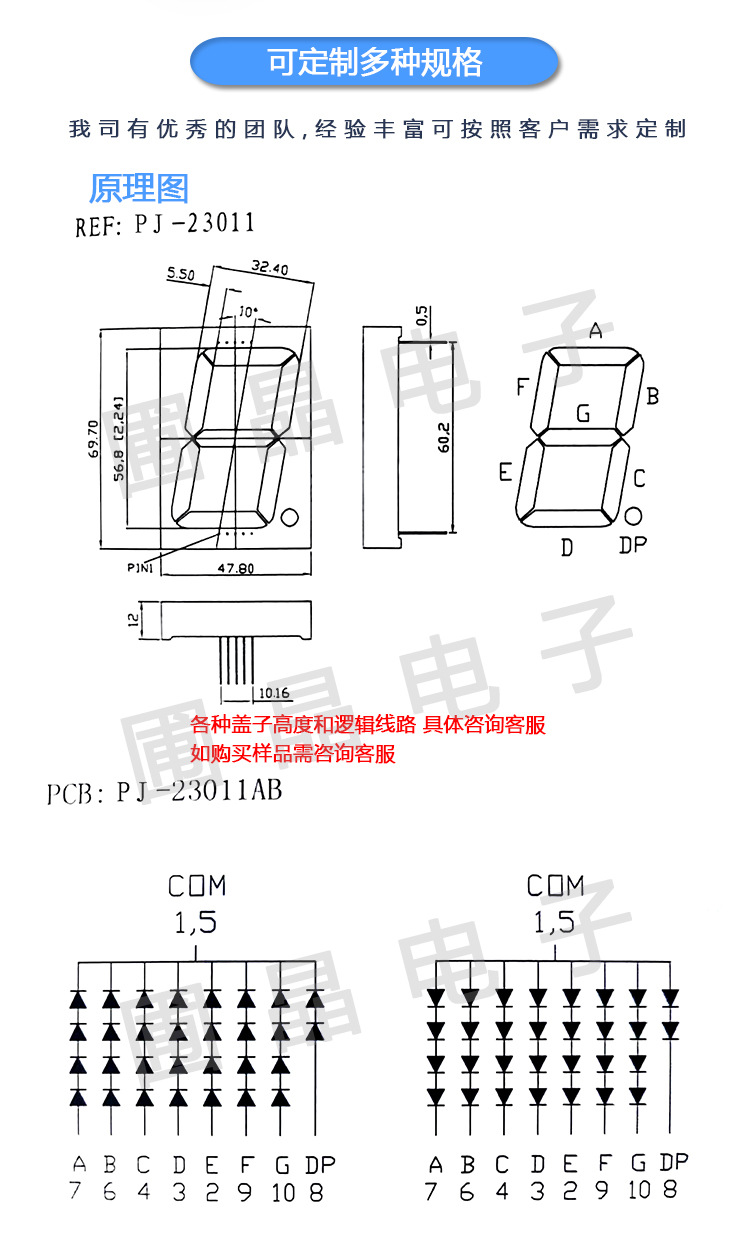

    Product Specs:
    • REF Model
    • Overall Size(mm)
    • Supporting Facilities PCB
    • Graphics
    • Common Foot//Control Foot
    • 23012REF
    • 69.7X47.8X12
    • 23011AB系列
    • 1,5//7,6,4,3,2,9,10,8
    • 23011REF
    • 69.7X47.8X12
    • 23011KL
    • 3,8//7,6,4,2,1,9,10,5
    • 23011REF
    • 69.7X47.8X12
    • 23011AB 23011CD 23011EF 23011GH 23011IJ
    • 1,5//7,6,4,3,2,9,10,8 5,1//7,6,4,3,2,9,10,8 1,5//7,6,4,3,2,9,10,8 3,8//7,6,4,2,1,9,10,5 1,5//7,6,4,3,2,9,10,8
