Product Details

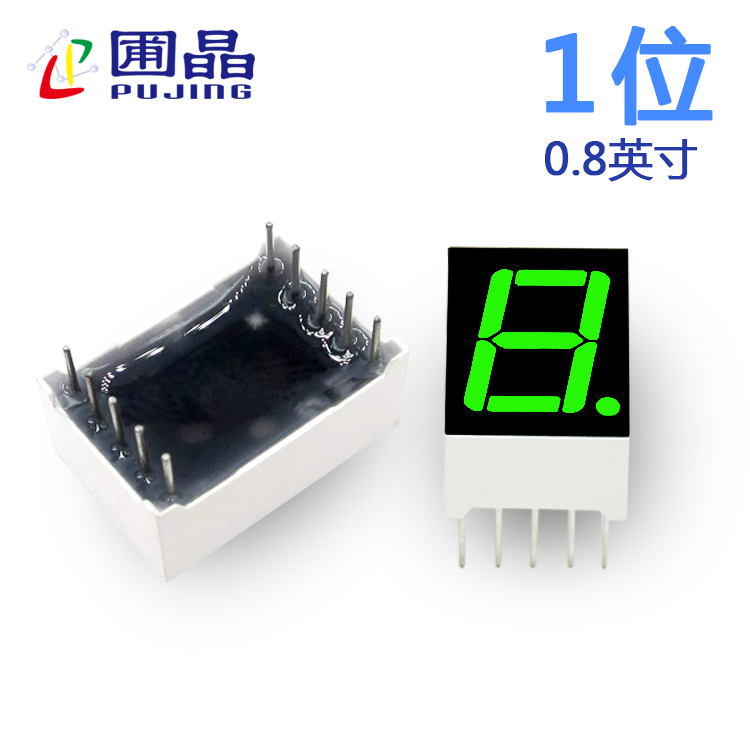

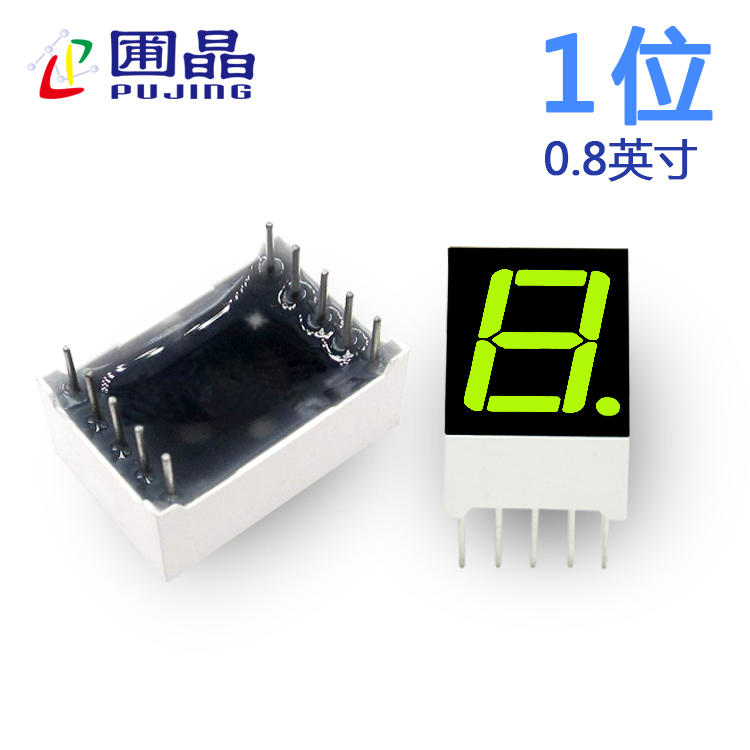

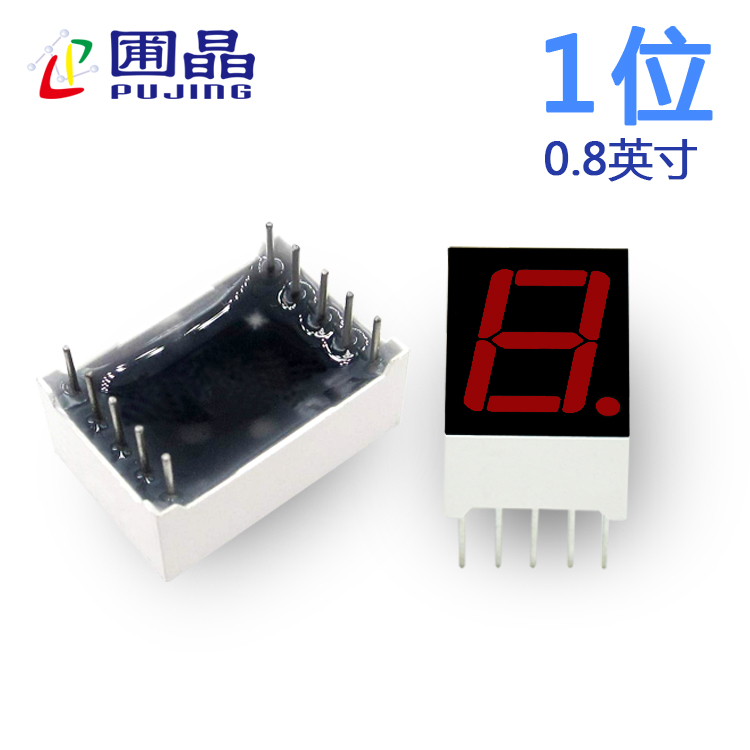

    8011AB

    • Product Model:
      • 8011AB
    • Digit:
      • 1 Digit
    • Digit Height:
      • 0.8inch
    • Driving Peak Current:
      • 80MA(mA)
    • Recommended Driving Voltage:
      • 5V(V)
    • Functional Pin Alignment(optional):
      • See specification sheet
    • Drive Mode(optional):
      • Common cathode、Common Anode、Common cathode & anode
    • Color(optional):
      • White、Ice blue、Hyper Bright Red、Orange、Bright red、Yellow、Yellow green、Blue、Green
    Inquiry

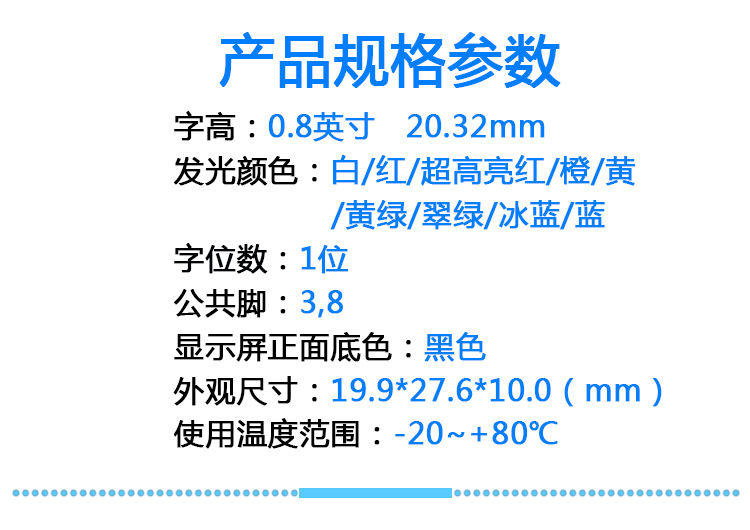

    Product Specs:
    • REF Model
    • Overall Size(mm)
    • Supporting Facilities PCB
    • Graphics
    • Common Foot//Control Foot
    • 8019REF
    • 25X18.6X8.3
    • 8019AB
    • /
    • 8018-DX- REF
    • 27.7X20X10
    • 8018CD-TP-LB
    • 挡显
    • 8018REF
    • 27.7X20X10
    • 8018AB-DT
    • 3,8//7,6,4,2,1,9,10,5
    • 8017REF
    • 27.5X19.8X10
    • 8017AB
    • 3,8//7,6,4,2,1,9,10,5
    • 8016REF
    • 24.4X19.4X7.7
    • 8014GH系列
    • /
    • 8015REF
    • 24.4X19.4X10.75
    • 8015AB
    • 5//6,2,4,1,7,3
    • 8014REF
    • 24.4X19.4X8
    • 8013AB系列 8014IJ
    • 8/2,1,9,7,6,4,5,10 1//3,4,5,6,7,2
    • 8013REF
    • 25X18.6X8.4
    • 8013AB 8013CD 8013EF 8013GH
    • 8/2,1,9,7,6,4,5,10 5//6,2,4,1,7,3 1//3,4,7,6,2,5 5//6,2,4,1,7,3
    • 8012REF
    • 27.5X19.9X8.3
    • 8012AB 8012CD 8012EF
    • 3,5,11,16//6,1,14,12,10,4,2,13,19 3,5,11//1,14,12,10,4,2,13,6,9 1,7//3,11,8,4,5,2,10,6

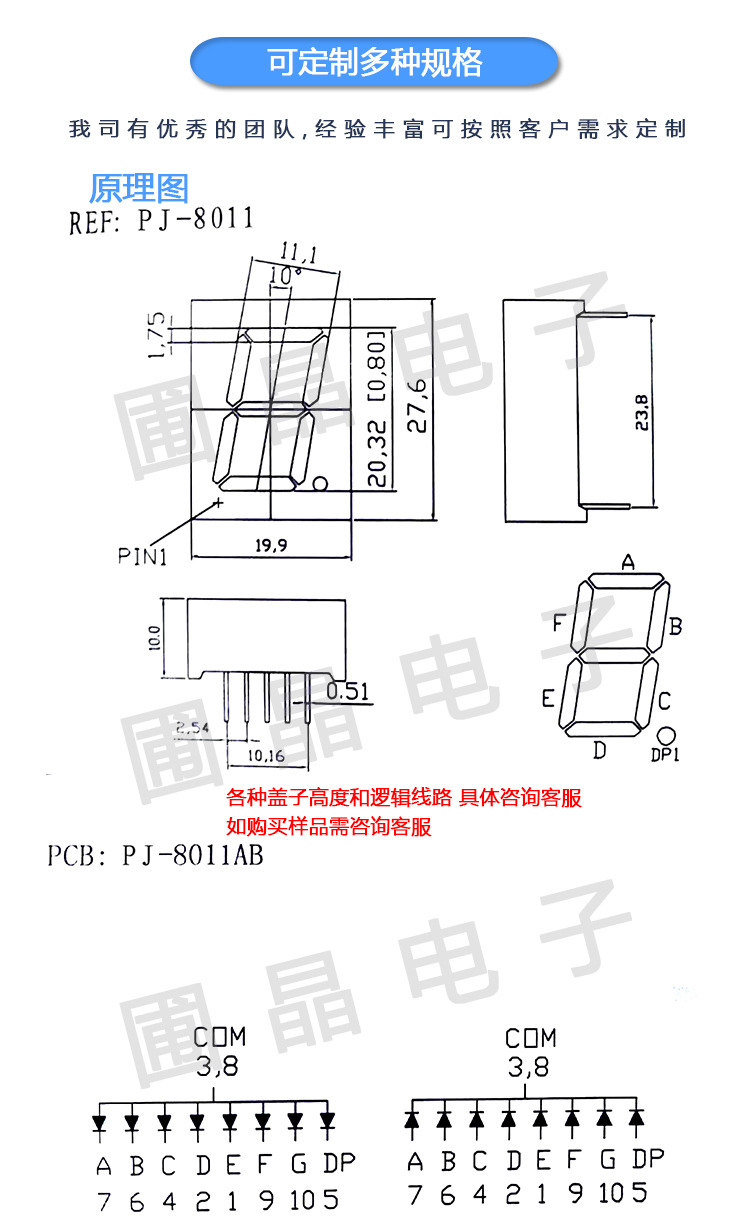

    • 8011REF
    • 27.6X19.9X10
    • 8011AB 8011CD 8011EF 8011GH 8011IJ 8011KL 8011MN 8011OP 8011QR
    • 3,8//7,6,4,2,1,9,10,5 3,8//7,6,4,2,1,9,10,5 5//6,2,4,1,7,3 5//6,2,4,1,7,3 / / / 3,8//7,6,4,2,1,9,10,5 /
