产品详情

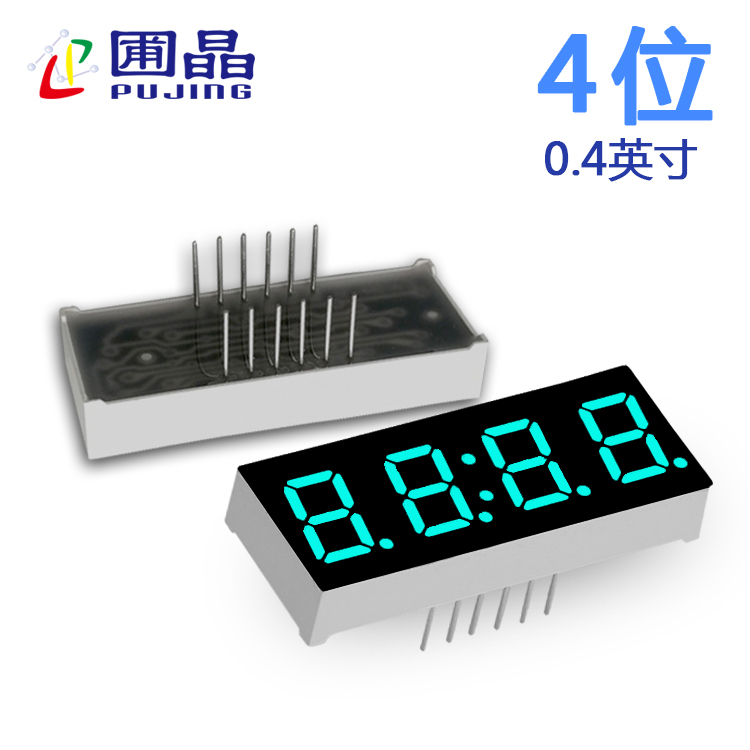

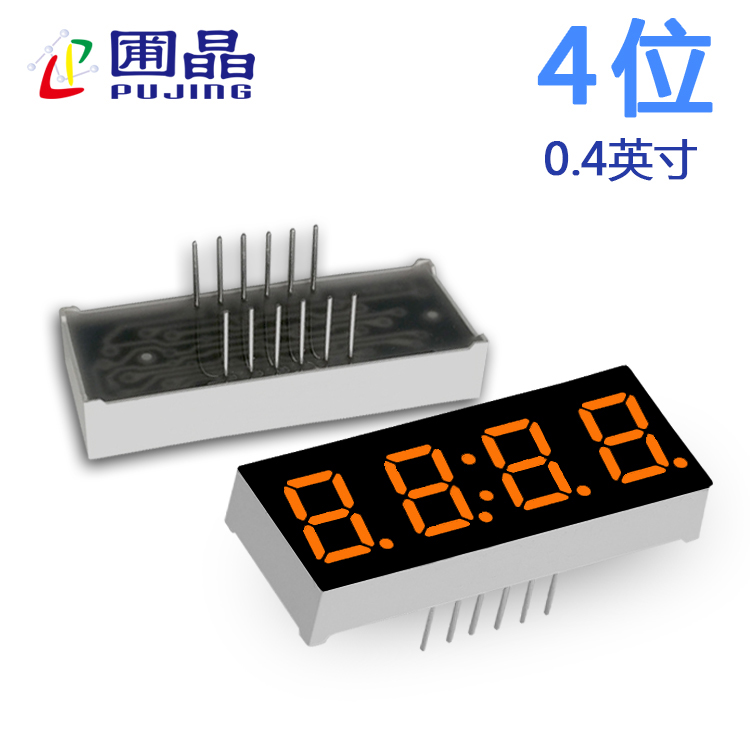

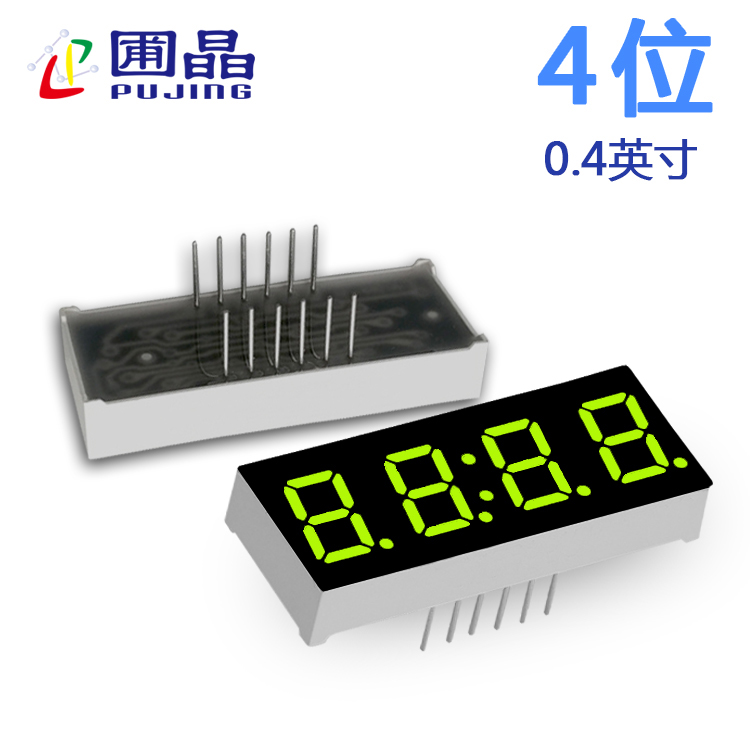

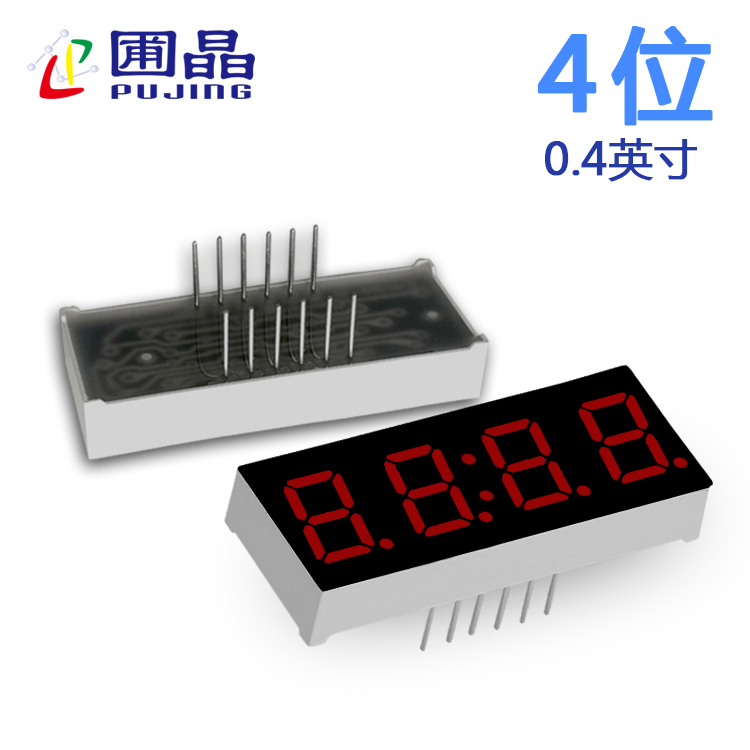

数码管4位4041AB
- 产品型号： 数码管4位4041AB
- 8字位数： 四位
- 8字高度： 0.4英寸
- 驱动峰值电流： (mA)
- 建议驱动电压： (V)
- 功能脚排位（可选）：
- 驱动方式（可选）：
- 显示颜色（可选）： 白、冰蓝、超高亮红、橙、翠绿、高亮红、黄、黄绿、蓝
产品规格：
- REF型号
- 外形尺寸(mm)
- 配套 PCB
- 显示图形
- 公共脚//控制脚
- 40462REF
- 41X16.6X24
- 4041AB
-
- 12,9,8,6,//11,7,4,2,1,10,5,3
- 40460REF
- 40.5X16X9
- 40460AB-TP
-
- 11.2.7.6//10.8.5.4.1.9.3
- 40459-TP-REF
- 40.4X16X13.5
- 4041AB-TP-0603
-
- 12,9,8,6,//11,7,4,2,1,10,5,3
- 40458REF
- 29.8X16X7
- 40458AB
-
- /
- 40456REF
- 40.4X16X8
- 40454AB-TP
-
- 12,9,8,6//11,7,4,2,1,10,5,3
- 40455REF
- 40.5X16X20
- 40455AB-TP
-
- 12,9,8,6//11,7,4,2,1,10,5,3
- 40454REF
- 40.4X16X10
- 40454AB-TP
-
- 12,9,8,6//11,7,4,2,1,10,5,3
- 40452REF
- 35.5X16X13
- 40452AB-TP
-
- 12,9,8,6//11,7,4,2,1,10,5,3
- 40451-TP-REF
- 40.4X16X10
- 4041AB-TP
-
- 12,9,8,6,//11,7,4,2,1,10,5,3
- 40450REF
- 30.1X15.1X7.1
- 40450AB
-
- 1,2,3,4,5//17,15,16,11,18,7,14,8,13,10,9,12
- 40449REF
- 40X16X9.5
- 40448AB系列
-
- 7,5,4,1//11,12,3,2,6,9,8,10
- 40448REF
- 40X16X16
- 40448AB
-
- 7,5,4,1//11,12,3,2,6,9,8,10
- 40447REF
- 40.7X16X12
- 4041AB系列
-
- 12,9,8,6//11,7,4,2,1,10,5,3
- 40446REF
- 40.4X16X14
- 4041IJ系列
-
- 12,9,8,6//11,7,4,2,1,10,5,3
- 40445REF
- 36.1X15.1X7.1
- 40445AB
-
- 1.2.3.4//17.15.16.11.18.7.14.8.13.10.9.12
- 40444REF
- 36X15X8
- 40444AB
-
- 12,9,8,6//11,7,4,2,1,10,5,3
- 40443REF
- 40.4X16X19
- 4041系列
-
- 12,9,8,6//11,7,4,2,1,10,5,3
- 40442 REF
- 40.4X16X3
- 40442AB-TP
-
- 12,9,8,6//11,7,4,2,1,10,5,3
- 40441REF
- 40.4X16X20
- 4041系列
-
- 12,9,8,6//11,7,4,2,1,10,5,3
- 40439REF
- 40.4X16X12
- 4041系列
-
- 12,9,8,6//11,7,4,2,1,10,5,3
- 40438-TP-REF
- 40.4X16X18
- 4041AB-TP-0603
-
- 12,9,8,6//11,7,4,2,1,10,5,3
- 40438 REF
- 40.4X16X18
- 4041AB系列
-
- 12,9,8,6//11,7,4,2,1,10,5,3
- 40437REF
- 40.4X16X10.5
- 4041AB系列
-
- 12,9,8,6//11,7,4,2,1,10,5,3
- 40436REF
- 40.4X16X15.5
- 4041AB系列
-
- 12,9,8,6//11,7,4,2,1,10,5,3
- 40435REF
- 40.4X16X15.5
- 4041AB系列
-
- 12,9,8,6//11,7,4,2,1,10,5,3
- 40434REF
- 40.4X16X13
- 4041AB系列
-
- 12,9,8,6//11,7,4,2,1,10,5,3
- 40432REF
- 40.5X16X5.3
- 40432AB-TP
-
- 12,9,8,6//11,7,4,2,1,10,5,3
- 40431-TP-REF
- 40.4X16X16.5
- 4041AB-TP
-
- 12,9,8,6//11,7,4,2,1,10,5,3
- 40431REF
- 40.4X16X16.5
- 4041AB系列
-
- 12,9,8,6//11,7,4,2,1,10,5,3
- 40430REF
- 40.4X16X13
- 4041AB系列
-
- 12,9,8,6//11,7,4,2,1,10,5,3
- 40429REF
- 40.4X16X13
- 4041AB系列
-
- 12,9,8,6//11,7,4,2,1,10,5,3
- 40428REF
- 40.4X16X11
- 4041AB系列
-
- 12,9,8,6//11,7,4,2,1,10,5,3
- 40427REF
- 40.4X16X11
- 4041AB系列
-
- 12,9,8,6//11,7,4,2,1,10,5,3
- 40426REF
- 40.4X16X11
- 4041AB系列
-
- 12,9,8,6//11,7,4,2,1,10,5,3
- 40425REF
- 40.4X16X11
- 4041AB系列
-
- 12,9,8,6//11,7,4,2,1,10,5,3
- 40424REF
- 40.4X16X12.5
- 4041AB系列
-
- 12,9,8,6//11,7,4,2,1,10,5,3
- 40423REF
- 40.4X16X12.5
- 4041AB系列
-
- 12,9,8,6//11,7,4,2,1,10,5,3
- 40422REF
- 40.4X16X10
- 4041AB系列
-
- 12,9,8,6//11,7,4,2,1,10,5,3
- 40421REF
- 40.4X16X10
- 4041AB系列
-
- 12,9,8,6//11,7,4,2,1,10,5,3
- 40420REF
- 40.4X16X8.5
- 4041AB系列
-
- 12,9,8,6,//11,7,4,2,1,10,5,3
- 40419-TP-REF
- 40.4X 16X8.5
- 4041AB-TP
-
- 12,9,8,6,//11,7,4,2,1,10,5,3
- 40419REF
- 40.4X 16X8.5
- 4041AB系列
-
- 12,9,8,6,//11,7,4,2,1,10,5,3
- 40418REF
- 40.4X16X14
- 4041AB系列
-
- 12,9,8,6,//11,7,4,2,1,10,5,3
- 40417REF
- 40.4X16X14
- 4041AB系列
-
- 12,9,8,6,//11,7,4,2,1,10,5,3
- 40416REF
- 40.4X16X9.5
- 4041AB系列
-
- 12,9,8,6,//11,7,4,2,1,10,5,3
- 40415REF
- 40.4X16X9.5
- 4041AB系列
-
- 12,9,8,6//11,7,4,2,1,10,5,3
- 40414REF
- 40.4X16X15.6
- 4041AB系列
-
- 12,9,8,6//11,7,4,2,1,10,5,3
- 40413REF
- 40.4X16X15.6
- 4041AB系列
-
- 12,9,8,6,//11,7,4,2,1,10,5,3
- 40412REF
- 40.4X16X10
- 4041AB系列
-
- 12,9,8,6,//11,7,4,2,1,10,5,3
- 40411REF
- 40.4X16X10
- 4041AB系列
-
- 12,9,8,6,//11,7,4,2,1,10,5,3
- 40411TP -REF
- 40.4X16X10
- 4041AB-TP
-
- 12,9,8,6,//11,7,4,2,1,10,5,3
- 40410REF
- 40.4X16X15
- 4041AB系列
-
- 12,9,8,6,//11,7,4,2,1,10,5,3
- 4049REF
- 40.4X16X15
- 4041AB系列
-
- 12,9,8,6//11,7,4,2,1,10,5,3
- 4048REF
- 40.4X16X11.5
- 4041AB系列
-
- 12,9,8,6//11,7,4,2,1,10,5,3
- 4047REF
- 40.4X16X11.5
- 4041AB系列
-
- 12,9,8,6,//11,7,4,2,1,10,5,3
- 4046REF
- 40.4X16X14.5
- 4041AB系列
-
- 12,9,8,6,//11,7,4,2,1,10,5,3
- 4045REF
- 40.4X16X14.5
- 4041AB系列
-
- 12,9,8,6//11,7,4,2,1,10,5,3
- 4044REF
- 40.4X16X9
- 4041AB系列
-
- 12,9,8,6,//11,7,4,2,1,10,5,3
- 4043REF
- 40.4X16X9
- 4041AB系列
-
- 12,9,8,6//11,7,4,2,1,10,5,3
- 4042REF
- 40.4X16X7
- 4041AB系列
-
- 12,9,8,6//11,7,4,2,1,10,5,3
- 4041REF
- 40.4X16X7
- 4041TP-REF
-
- 12,9,8,6,//11,7,4,2,1,10,5,3
- 4041REF
- 40.4X16X7
- 4041ZK
-
- 12,9,8,6//11,7,4,2,1,10,5,3； 9//7DP5---9//5DP6
- 4041REF
- 40.4X16X7
- 4041ZJ
-
- /
- 4041REF
- 40.4X16X7
- 4041ZI
-
- 1,2,3,4,//8,7,6,5不带DP4
- 4041REF
- 40.4X16X7
- 4041ZH
-
- 20,5//17,16,4,1,3,18,19,2； 15,10//12,11,9,6,8,13,14,7
- 4041REF
- 40.4X16X7
- 4041ZG
-
- 14,11,10,6,7//13,9,4,2,1,12,5,3
- 4041REF
- 40.4X16X7
- 4041ZF
-
- 9,28//2,1,7,4,3,10,8,6,5,11,12,24,23,22,21,27,25,26,13,17,16,15,14,20,18,19
- 4041REF
- 40.4X16X7
- 4041ZC
-
- 12,9,8,6,3//11,7,4,2,1,10,5
- 4041REF
- 40.4X16X7
- 4041ZB
-
- 12,9,8,6,3//11,7,4,2,1,10,5； 3//1DP5,DP6---3//5DP3
- 4041REF
- 40.4X16X7
- 4041ZA
-
- 13//31,29,1,3,2,30,32,4,26,28,7,6,5,27,25,8,23,21,9,11,10,22,24,12,18,20,16,14,15,19,17
- 4041REF
- 40.4X16X7
- 4041UV
-
- 12,9,8,6,//11,7,4,2,1,10,5,3； 9//3DP5,8//3DP6—12//DP2
- 4041REF
- 40.4X16X7
- 4041MN
-
- 1,20,6,8,17,12//24,23,5,2,4,21,22,3,7,19,16,13,9,8,11,14,15,10
- 4041REF
- 40.4X16X7
- 4041KL
-
- 12,9,8,6,//11,7,4,2,1,10,5,3； 9//3DP5,DP6—12//DP2
- 4041REF
- 40.4X16X7
- 4041IJ
-
- 12,9,8,6,//11,7,4,2,1,10,5,3； 9//3DP5,DP6—12//DP2
- 4041REF
- 40.4X16X7
- 4041GH
-
- 12,9,8,6,//11,7,4,2,1,10,5,3； 8//3DP5—6//3DP6
- 4041REF
- 40.4X16X7
- 4041EF
-
- 12,9,8,6,//11,7,4,2,1,10,5,3； 9//3DP5—8//3DP6
- 4041REF
- 40.4X16X7
- 4041CD
-
- 12,9,8,6//11,7,4,2,1,10,5,3
- 4041REF
- 40.4X16X7
- 4041AB
-
- 12,9,8,6//11,7,4,2,1,10,5,3； 9//3DP5,DP6
