产品详情

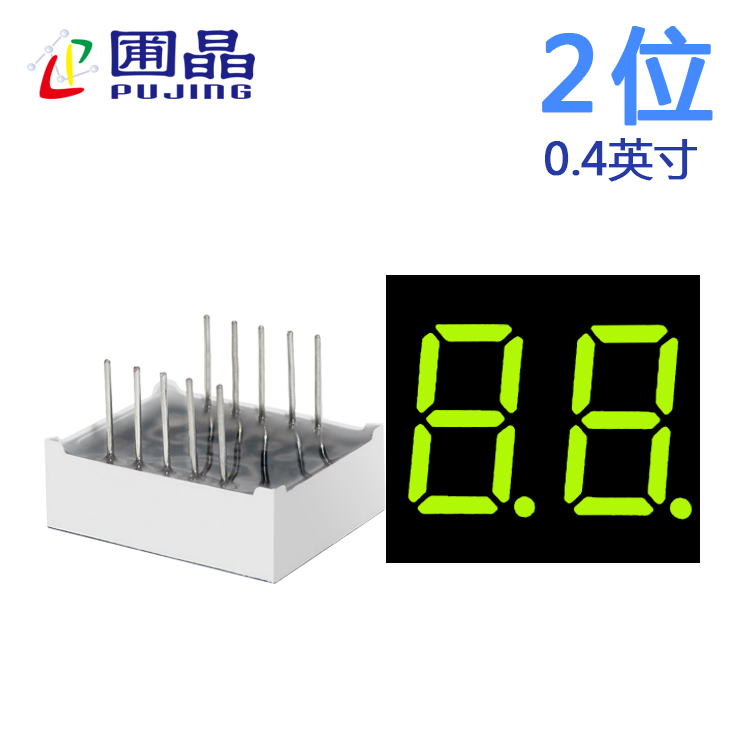

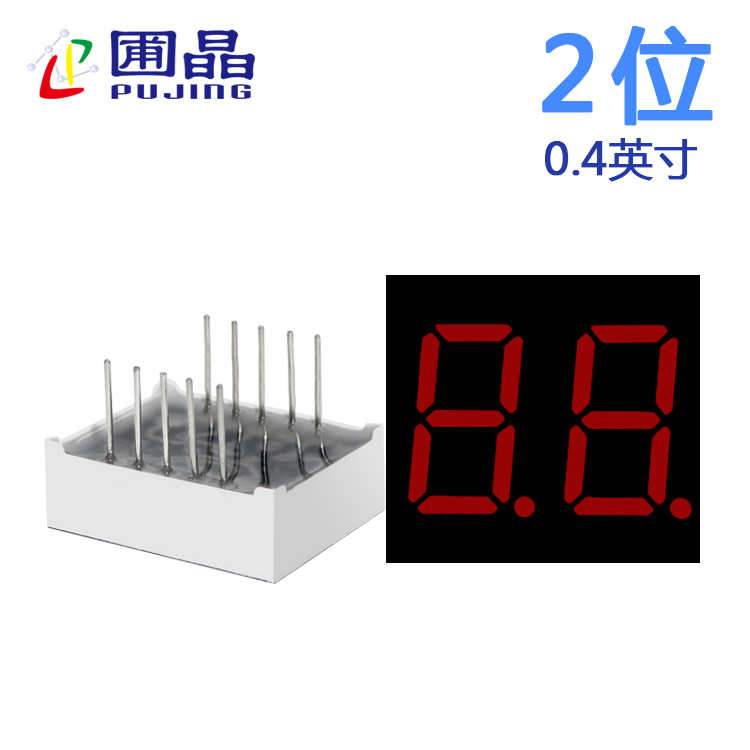

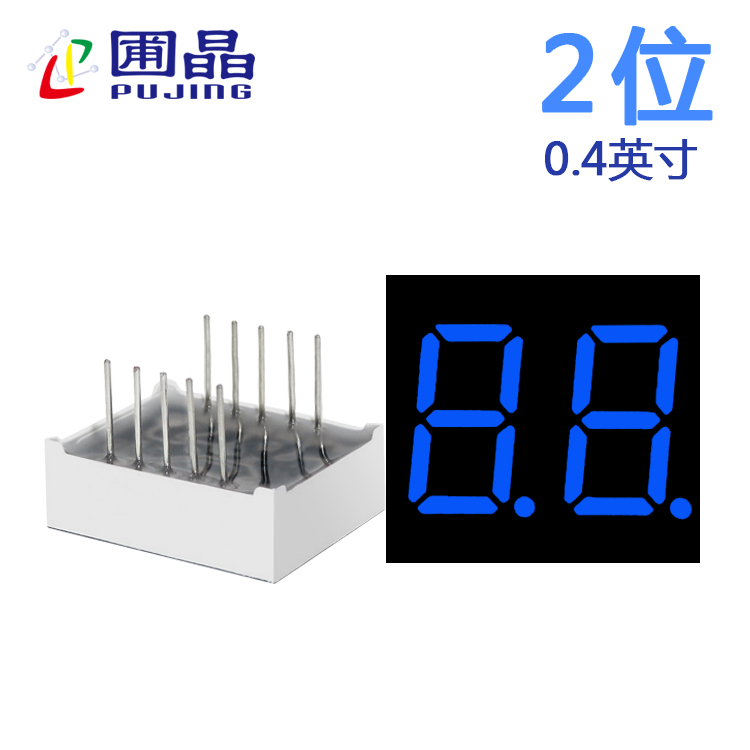

数码管两位4021AB
- 产品型号： 数码管两位4021AB
- 8字位数： 两位
- 8字高度： 0.4英寸
- 驱动峰值电流： 80MA(mA)
- 建议驱动电压： 5V(V)
- 功能脚排位（可选）： 参见产品规格表
- 驱动方式（可选）： 共阴、共阳、共阴阳
- 显示颜色（可选）： 白、冰蓝、超高亮红、橙、翠绿、高亮红、黄、黄绿、蓝
产品规格：
- REF型号
- 外形尺寸(mm)
- 配套 PCB
- 显示图形
- 公共脚//控制脚
- 40233REF
- 20.1X16X7
- 40233AB
-
- 10,5//7,6,4,1,3,8,9,2
- 40232REF
- 20.1X16X20
- 40219AB-DB
-
- 10,5//7,6,4,1,3,8,9,2
- 40231REF
- 20.2X16X10.2
- 40231AB-DY
-
- /
- 40230REF
- 20.2X16X7
- 40230AB-TP-LB
-
- 10,5//7,6,4,1,3,8,9,2
- 40229REF
- 20.1X16X9
- 40229AB
-
- 10,5//7,6,4,1,3,8,9,2
- 40228REF
- 20X16X13(12)
- 40228AB-DT
-
- 10,5//7,6,4,1,3,8,9,2
- 40227REF
- 15.5X15X5.5
- 40227AB
-
- 10,5//3,9,8,6,7,4,1,2
- 40226REF
- 17.8X16X6
- 40226AB-DT
-
- 8,9//1,2,3,4,5,6,7
- 40225REF
- 20.1X16X9.5
- 40219AB-DB
-
- 10,5//7,6,4,1,3,8,9,2
- 40224REF
- 20.1X16X23
- 4021CD
-
- 10,5//7,6,4,1,3,8,9,2
- 40223REF
- 20.2X16X13
- 40219AB-DB
-
- 10,5//7,6,4,1,3,8,9,2
- 40222REF
- 20.1X16X12
- 4021CD系列
-
- 10,5//7,6,4,1,3,8,9,2
- 40221REF
- 20.1X16X7.4(10.3)
- 4021ZC
-
- 10,5//3,9,8,6,7,4,1
- 40220REF
- 20.1X16X19
- 4021CD-DB
-
- 10,5//7,6,4,1,3,8,9,2
- 40219REF
- 20.2X16X19.5（14.8）
- 40219AB-DB
-
- 10,5//7,6,4,1,3,8,9,2
- 40218REF
- 20.2X16X15.2
- 4021CD系列
-
- 10,5/7,6,4,1,3,8,9,2
- 40217REF
- 20.1X16X18
- 4021CD系列
-
- 10,5//7,6,4,1,3,8,9,210,5//7,6,4,1,3,8,9,2
- 40216REF
- 20.1X16X11
- 4021CD系列
-
- 10,5//7,6,4,1,3,8,9,2
- 40215REF
- 20.1X16X7.9
- 4021CD系列
-
- 10,5//7,6,4,1,3,8,9,2
- 40214REF
- 20.1X16X11
- 4021CD系列
-
- 10,5//7,6,4,1,3,8,9,2
- 40213REF
- 20.1X16X16.5
- 4021CD系列
-
- 10,5//7,6,4,1,3,8,9,2
- 40212REF
- 20.1X16X25.7X20
- 40212AB
-
- 10,5//7,6,4,1,3,8,9,2
- 40211REF
- 20.1X16X8(9)
- 4021CD系列
-
- 10,5//7,6,4,1,3,8,9,2
- 40210REF
- 20.1X16X14
- 4021CD系列
-
- 10,5//7,6,4,1,3,8,9,2
- 4028-TP- REF
- 20.1X16X9
- 4021CD-TP
-
- 10,5//7,6,4,1,3,8,9,2
- 4028REF
- 20.1X16X9
- 4021CD-TP
-
- 10,5//7,6,4,1,3,8,9,2
- 4027-TP- REF
- 20.1X16X12
- 4021CD-TP
-
- 10,5//7,6,4,1,3,8,9,2
- 4027REF
- 20.1X16X12
- 4021CD系列
-
- 10,5//7,6,4,1,3,8,9,2
- 4026REF
- 20.2X16X9.5
- 4026AB
-
- 14//16,15,,3,2,1,18,17,4 ; 13//11,10,,8,6,5,12,7,9
- 4025REF
- 20.1X16X5.8
- 4021GH系列
-
- 14//16,15,,3,2,1,18,17,4 ; 13//11,10,,8,6,5,12,7,9
- 4024REF
- 13.7X13X5
- 4024AB
-
- 1//12,11,9,6,4,3,10,8,2,5
- 4023 –TP-REF
- 20.2X16X10
- 4021CD-TP
-
- 10,5//7,6,4,1,3,8,9,2
- 4023REF
- 20.2X16X10
- 4021CD系列
-
- 10,5//7,6,4,1,3,8,9,2
- 4022REF
- 20.1X16X5
- 4021KL系列
-
- 5//7,1 ; 5,10//6,3,4,4,2,6,3
- 4021-TP-REF
- 20.1X16X7
- 4021CD-TP
-
- 10,5//7,6,4,1,3,8,9,2
- 4021REF
- 20.1X16X7
- 4021ZE
-
- /
- 4021REF
- 20.1X16X7
- 4021ZD
-
- /
- 4021REF
- 20.1X16X7
- 4021ZC
-
- /
- 4021REF
- 20.1X16X7
- 4021ZB
-
- /
- 4021REF
- 20.1X16X7
- 4021ZA
-
- 8,7//10,9,1,4,3,6,5,2
- 4021REF
- 20.1X16X7
- 4021YZ
-
- /
- 4021REF
- 20.1X16X7
- 4021WX
-
- /
- 4021REF
- 20.1X16X7
- 4021UV
-
- /
- 4021REF
- 20.1X16X7
- 4021ST
-
- 10,5//3,9,8,6,7,4,1,2
- 4021REF
- 20.1X16X7
- 4021QR
-
- /
- 4021REF
- 20.1X16X7
- 4021OP
-
- 10,5//2,6,4,1,3,8,9,7
- 4021REF
- 20.1X16X7
- 4021MN
-
- /
- 4021REF
- 20.1X16X7
- 4021KL
-
- /
- 4021REF
- 20.1X16X7
- 4021IJ
-
- 10,5//9,7,1,4,2,6,3,8
- 4021REF
- 20.1X16X7
- 4021GH
-
- 14//16,15,3,2,1,18,17,4, 13//11,10,8,6,5,12,9,7
- 4021REF
- 20.1X16X7
- 4021EF
-
- 5//15,13,1,3,2,14,16,4 5//10,12,8,6,7,11,9
- 4021REF
- 20.1X16X7
- 4021CD
-
- 10,5//7,6,4,1,3,8,9,2
- 4021REF
- 20.1X16X7
- 4021AB
-
- 4//15,13,1,3,2,14,16 5//10,12,8,6,7,11,9
